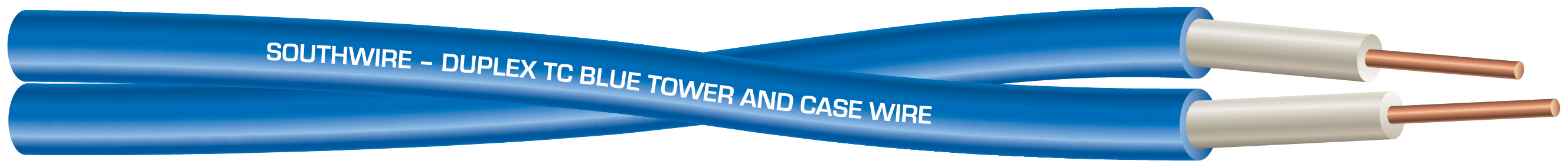

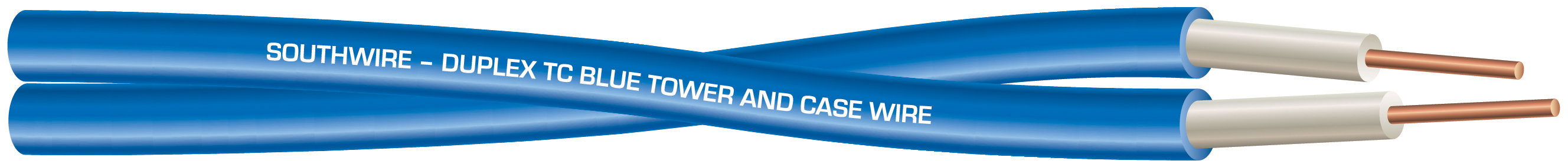

Duplex Tower & Case
Available from Southwire Co.
Southwire 600V EF EPR/PVC TC Blue Tower and Case Wire is suited for use as relay and associated signal apparatus wiring and for connector wire use in applications where flexibility, ease of termination, small diameters, long lasting performance, and stable service life are required. May be installed in wet or dry locations. These cables are capable of operating continuously at a conductor temperature not in excess of 90°C for normal operation, 130°C for emergency overload conditions, and 250°C for short circuit conditions.
Southwire 600V EF EPR/PVC TC Blue Tower and Case Wire meets or exceed the applicable requirements of the following standards and specifications:
• ASTM-B8 – stranded uncoated copper conductors
• ICEA S-95-658 / NEMA WC70 (Physical & Electrical Requirements)
• AREMA Signal Manual Part 10.3.19 for EPR Type I Insulation
• AREMA Signal Manual Part 10.3.23 for PVC Type II Jacket
Southwire’s 600V EF EPR/PVC TC Blue Tower and Case Wire offers flexible, easy bending Eco Friendly no-lead EPR insulation, quick cable preparation, 90°C continuous operating temperature, and resistance to moisture and most oils, acids, and alkalis with an overall durable PVC jacket.
